Full Size Portable Message Signs
Amsig’s line of full size message signs are ideal for DOT and wide shoulder/median applications. Amsig offers displays, power configurations, and detailed modifications that are approved in every state. The T300 Series of signs share a common design and operation to improve quality of workmanship and cost-effectiveness.CMS-T331 3-Line/8-Char Display
MESSAGING AND LEGIBILITY
The CMS-T331 has the memory capacity to retain 200 pre-programmed messages, 200 user-generated messages, and 250 message sequences (up to 10 pages / sequence). The brightness, or intensity, of the LED portion of the display is regulated automatically via a photosensitive circuit that adjusts the LED intensity in response to ambient illumination, thus assuring superior visibility and legibility under all lighting conditions.
FEATURES
- Character Matrix
- 3 Lines x 8 Discrete Characters
- Minimum 30 day battery run time
- 18” High Characters
- Up to 8 Characters per line
- 2 Font sizes: 4×7 , 5×7
- NTCIP Compliant
- +1,000’ Legibility
- 4,800’ Viewability
OPTIONS
- Cellular (CDMA / IXRTT , GSM / GPRS)
- WiFi
- Landline or Ethernet (TCP / IP) Options
- GPS
- Radar Overspeed Detection
- Queue Detection
- VoiceStar™ Highway Advisory Radio
- AIMSTAR™ Adjustable Solar Assembly
- Radar Data Logging & Graphing
- CCTV
- Expanded solar / battery bank
CMS-T332 3-Line/12-Char Line Matrix Display
The CMS-T332 from American Signal Company represents the latest advances in ALL-LED sign and highway safety technology. The CMS-T332 combines our SOLR Primary Power Supply with our high quality trailer assembly to give you the lowest cost and most effective portable/changeable message sign today.
FEATURES
- 1 line, 2 line, 3 line messages
- Line Matrix 21 Rows x 50 Columns
- 18” Characters w/ Variable Width Fonts
- Up to 12 Characters per line
- 4 Font sizes
- NTCIP Compliant
COST EFFECTIVE
- Energy Efficient
- Environmentally Sound
EASY TO USE
- User-friendly
- Local and / or remote sign control
LOW MAINTENANCE
- Long Life LEDs
- SOLR Primary Power Supply
GRAPHICS AND LEGIBILITY
- The CMS-T332 has the memory capacity to retain 199 pre-programmed messages, 199 user-generated messages, and 250 message sequences (up to six message s/sequence)
- American Signal Company’s Dynapoint Optical Technology provides enhanced visibility and legibility in both day and night, with a legibility distance over twelve hundred feet (1200’)
OPTIONS
- Landline or Ethernet (TCP/IP) Options
- Cellular (CDMA/1XRTT, GSM/GPRS)
- Radar Overspeed Detection
- Queue Detection
- VoiceStar™ Highway Advisory Radio
- AIMSTAR™ Adjustable Solar Assembly
- Radar Data Logging & Graphing
- ITS Ready Options: CCTV, HAR, GPS
CMS-T333 4-Line/12-Char Full Matrix Display
The CMS-T333 from American Signal Company represents the latest advances in ALL-LED sign and highway safety technology. This ALL-LED, Full Matrix, Graphics capable display, utilizing 30 degree ITE Amber LEDs, combines American Signal Company’s SOLR™ Primary Power System with our high quality trailer to give you the lowest cost and most effective portable/changeable message sign available today.
FEATURES
- Full Matrix 28 Rows x 50 Column
- 1, 2, 3, or 4 line messages
- Graphics and Animations
- 13” to 53” Characters
- Up to 12 Characters per line
- 11 Font sizes
- Minimum 30 day battery run time
- NTCIP Compliant
MESSAGING AND LEGIBILITY
- This Full Matrix Display gives you the power to deliver information via larger text and full sign sized graphics
- Legibility distance over twelve hundred feet (1200’)
- Over 200 factory pre-programmed MUTCD compliant messages
- 11 character fonts with character heights from 13” to 53”
- Our LED design provides outstanding legibility in all weather conditions, with wide angle visibility
OPTIONS
- Cellular (CDMA / IXRTT, GSM / GPRS)
- WiFi
- Landline or Ethernet (TCP / IP) Options
- GPS
- Radar Overspeed Detection
- Queue Detection
- VoiceStar™ Highway Advisory Radio
- AIMSTAR™ Adjustable Solar Assembly
- Graphic User Interface Software
- CCTV
- Vehicle Data Logging Capability
- Expanded solar / battery bank
Mini Portable Message Signs
Amsig’s Advantage-Series mini-matrix signs are a well-suited to municipal, county, and narrow shoulder applications. Amsig’s variety of display size and available equipment mean we can provide the perfect solution to all of your traffic control and safety needs. The Advantage-Series of signs share a common design and operation to improve quality of workmanship and cost-effectiveness.CMS-GP232T Advantage, 3’x6′ Full Matrix Trailer-Mounted Display
The 232T Advantage from American Signal Company represents the latest advances in ALL-LED sign and highway safety technology. This ALL-LED, Full Matrix, Graphics capable display, utilizing 30 degree ITE amber LEDS, gives you the lowest cost and most effective portable changeable display message sign available today.
FEATURES
- Full Matrix 28 Rows x 72 Columns
- 1, 2, 3, 4 line messages
- Graphics and Animations
- 5” to 19” Characters
- Up to 18 Characters per line
- 11 Font sizes
- NTCIP Compliant
COST EFFECTIVE
- Energy Efficient
- Environmentally Sound
EASY TO USE
- User-friendly
- Local and / or remote sign control
LOW MAINTENANCE
- Long Life LEDs
- SOLR Primary Power Supply
OPTIONS
- Cellular (CDMA / IXRTT , GSM / GPRS)
- Landline or Ethernet (TCP / IP) Options
- Radar Overspeed Detection
- Queue Detection
- VoiceStar™ Highway Advisory Radio
- AIMSTAR™ Adjustable Solar Assembly
- Radar Data Logging & Graphing
- ITS Ready Options: CCTV, HAR
- Vehicle mount (yoke or skid)
GRAPHICS AND LEGIBILITY
- This Full Matrix Display gives you the power to deliver information via larger text and full sign sized graphics
- Legibility distance over one thousand feet (1000’)
- 26 MUTCD symbol signs are available
- 11 character fonts with character heights from 5” to 19”
- Full height chevrons, moving arrows
- Ability to flash lines or entire message
CMS-GP432T Advantage, 4’x8′ Full Matrix Trailer-Mounted Display
The 432T Advantage from American Signal Company represents the latest advances in ALL-LED sign and highway safety technology. This ALL-LED, Full Matrix, Graphics capable display, utilizing 30 degree ITE Amber LEDs, gives you the lowest cost and most effective portable / changeable display message sign available today. This display is capable of both static and dynamic graphics, full display sized messages on one to three lines and a choice of nine font sizes.
FEATURES
- Full Matrix 28 Rows x 50 Columns
- 1, 2, 3 or 4 line messages
- Graphics and Animations
- 7” to 30” Characters
- Up to 12 characters per line
- 11 font sizes
- NTCIP Compliant
MESSAGING AND LEGIBILITY
- The Full Matrix Display gives you the power to deliver information via larger text and full sign sized graphics
- Legibility distance over one thousand feet (1000’)
- 26 MUTCD symbol signs are available
- 11 character fonts with character heights from 7” to 30”
- Full height chevrons, moving arrows
- Ability to flash lines or entire message
OPTIONS
- Vehicle Mount (Yoke or Skid)
- Cellular (CDMA/1XRTT, GSM/GPRS)
- WiFi
- Land line or Eithernet (TCP/IP) Options
- GPS
- Radar Overspeed Detection
- Queue Detection
- VoiceStar™ Highway Advisory Radio
- AIMSTAR™ Adjustable Solar Assembly
- Radar Data Logging Capability
- CCTV
CMS-GP465T Advantage, 4’x6′ Full Matrix Trailer-Mounted Display
The 465T Advantage from American Signal Company represents the latest advances in ALL-LED sign and highway safety technology. This ALL-LED, Full Matrix, Graphics capable display, utilizing 30 degree ITE Amber LEDs, gives you the lowest cost and most effective portable / changeable display message sign available today. With this display, users have the ability to furnish timely, pertinent, and dynamic traffic information to en-route motorists via alphanumeric text and / or graphic display.
FEATURES
- Full Matrix 24 Rows x 48 Columns
- 1, 2, 3, or 4 line messages
- Graphics and Animations
- 8.5” to 34” Characters
- Up to 12 Characters per line
- 11 Font sizes
- NTCIP Compliant
COST EFFECTIVE
- Energy Efficient
- Environmentally Sound
EASY TO USE
- User-friendly
- Local and / or remote sign control
LOW MAINTENANCE
- Long Life LEDs
- SOLR Primary Power Supply
OPTIONS
- Cellular (CDMA / IXRTT , GSM / GPRS)
- Landline or Ethernet (TCP / IP) Options
- Radar Overspeed Detection
- Queue Detection
- VoiceStar™ Highway Advisory Radio
- AIMSTAR™ Adjustable Solar Assembly
- Radar Data Logging & Graphing
- ITS Ready Options: CCTV, HAR
GRAPHICS AND LEGIBILITY
- This Full Matrix Display give you the power to deliver information via larger text and full sign sized graphics
- Legibility distance over one thousand feet (1000’)
- 26 MUTCD symbol signs are available
- 11 character fonts with character heights from 8.5” to 34”
- Full height chevrons, moving arrows
- Ability to flash lines or entire message
Vehicle Mounted Message Signs
Here are the vehicle-mounted message signs from American Signal Company. Click on the images or links below for more information about each product.CMS-GP232Y Advantage, 3’x6′ Full Matrix Vehicle-Mounted Display
The 232Y from American Signal Company represents the latest advances in All-LED sign and highway safety technology. With this sign, you can display full sign sized MUTCD regulatory and warning symbols, large sign sized text characters, and four lines of standard text characters. The light weight of the sign case and its small 34” high x 71” wide sign case size allows you to transfer it easily between different trucks, and even to its optional trailer mount.
This full matrix display, utilizing 30 degree ITE amber LEDs gives you the lowest cost and most effective display message sign available today. The wide viewing angle allows the sign to be legible at all times when other signs fade out and are unusable. The menu driven programming includes Amsig’s Quick Edit feature, which allows for one-screen access to create, display, and save user-defined messages.
CMS-GP432Y Advantage, 4’x8′ Full Matrix Vehicle-Mounted Display
The 432Y from American Signal Company represents the latest advances in All-LED sign and highway safety technology. With this sign, you can display full sign sized MUTCD regulatory and warning symbols, large sign sized text characters, and four lines of standard text characters. The light weight of the sign case and its small 48” high x 96” wide sign case size allows you to transfer it easily between different trucks, and even to its optional trailer mount.
This full matrix display, utilizing 30 degree ITE amber LEDs gives you the lowest cost and most effective display message sign available today. The wide viewing angle allows the sign to be legible at all times when other signs fade out and are unusable. The menu driven programming includes Amsig’s Quick Edit feature, which allows for one-screen access to create, display, and save user-defined messages.
CMS-GP465Y Advantage, 4’x6′ Full Matrix Vehicle-Mounted Display
The 465Y from American Signal Company represents the latest advances in All-LED sign and highway safety technology. With this sign, you can display full sign sized MUTCD regulatory and warning symbols, large sign sized text characters, and four lines of standard text characters. The light weight of the sign case and its small 48” high x 78” wide sign case size allows you to transfer it easily between different trucks, and even to its optional trailer mount.
This full matrix display, utilizing 30 degree ITE amber LEDs gives you the lowest cost and most effective display message sign available today. The wide viewing angle allows the sign to be legible at all times when other signs fade out and are unusable. The menu driven programming includes Amsig’s Quick Edit feature, which allows for one-screen access to create, display, and save user-defined messages.
Speed Display Trailers
American Signal Company offers robust and option-packed speed display trailers! Click on the images or links below for more information about these products.131T Digibrite
American Signal Company’s 131T Digibrite features an all LED, two digit, trailer mounted speed display sign. This radar speed trailer is equipped with a traffic radar operating in an “approach only” mode such that defaults to display the speeds of approaching vehicles exceeding the user selectable “threshhold” or “trigger” speed will be displayed. The 131T Digibrite encourages motorist awareness and work zone safety, and is well suited for both highway and urban use.
Digibrite PSLS
American Signal Company’s Digibrite PSLS (Portable Speed Limit Sign) is the highest-quality portable variable speed limit sign in the industry! Adjust to conditions and protect your workers by posting situational and enforceable speed limits through your work zone.
CE-Compliant Signs
Chromaview 3260-1, 1.2m x 1.6m Tri-Color Display
American Signal Company’s Chromaview 3260-1, or CV-1, is a high-resolution, full matrix, 3-color portable changeable message sign, powered by Amsig’s WebbExpress firmware. The high density of LED pixels allows you to display up to 5 lines of text, and up to 15 alpha-numeric characters per line! Red, white, and amber LED’s on a black background give you a wide range of graphic, symbol, and animation display options. As with all Amsig signs utilizing our NTCIP-compliant WebbExpress firmware, you will enjoy the quickest and easiest local operation in the industry, with superior run time performance on an all-steel trailer. The CV-1 can alternately be mounted directly to a vehicle, giving work crews higher visibility to motorists to make them safer.
Chromaview 3260-2, 1.5m x 2.7m Tri-Color Display
American Signal Company’s Chromaview 3260-2, or CV-2, is a high-resolution, full matrix, 3-color portable changeable message sign, powered by Amsig’s WebbExpress firmware. The high density of LED pixels allows you to display up to 5 lines of text, and up to 15 alpha-numeric characters per line! Red, white, and amber LED’s on a black background give you a wide range of graphic, symbol, and animation display options. As with all Amsig signs utilizing our NTCIP-compliant WebbExpress firmware, you will enjoy the quickest and easiest local operation in the industry, with superior run time performance on an all-steel trailer.
Arrow Boards
Portable arrow boards from American Signal CompanyPortable Arrow Boards
American Signal Company’s Flashing Arrow Panel products feature an all LED, 15- or 25-lamp displays mounted on a trailer or prepared for vehicle mounting. The arrow board trailers use a lift-and-rotate design, and are equipped with a high-wattage solar panel, secured low-maintenance battery bank, and simple user interface. We provide a robust power configuration, with a run time over 30 days on batteries alone.
The Amsig FAP product line encourages motorist awareness and work zone safety, and is well suited for both highway and urban use. Configurations include 3’x6′ (Type B) and 4’x8′ (Type C) boards with 15-lamp and 25-lamp displays.
BroadView Video Solutions
Amsig’s BroadView product line gives you security, surveillance, and proof of compliance through the power of mobile-based video! Each of these solutions can be tailored to suit your needs: property security, traffic surveillance, verification of traffic control compliance, visual spot checks, and more. We offer various platforms that are designed with you and your application in mind.BroadView 1 Video Camera Trailer
American Signal Company’s BroadView 1 Video Camera Trailer is a multi-functional necessity to complete your work zone or security application. The PTZ dome camera and communications system can monitor traffic for volume/occupancy/speed and relay data to an ITS work zone system, and provide crucial intelligence for incident management. Utilize onboard storage while also streaming your feeds.
The BroadView 1 consists of any of a wide-array of camera options mounted to our T25 Accessory Trailer, which provides battery power, solar charging, AC charging receptacle, and an extendable mast on a high quality heavy-duty trailer.
The BroadView 1 is suitable for any environment needing a highly portable platform!
BroadView 2 Video Camera Trailer
American Signal Company’s BroadView 2 Video Camera Trailer is a robust multi-functional necessity to complete your work zone or security application. The PTZ dome camera and communications system can monitor traffic for volume/occupancy/speed and relay data to an ITS work zone system, and provide crucial intelligence for incident management. Utilize onboard storage while also streaming your feeds.The BroadView 2 consists of any of a wide-array of camera options mounted to our T524 2-Stage Hydraulic Mast Trailer, which can provide the largest battery bank in the industry, solar charging, AC charging receptacle, and a high-load mast on a high quality heavy-duty trailer. The T524 trailer’s modular design lets you maximize your priorities, whether that be local component connectivity, equipment storage, or extra batteries for extended run times.
The BroadView 2 is suitable for any environment needing a highly portable platform with extensive design customization!
PCMS with BroadView
Amsig’s PCMS with BroadView products give you a message sign and video camera on one portable platform! Sign and camera can share a power system and storage space on any of our models.
Highway Advisory Radio
Highway Advisory Radio products from American Signal Company.VoiceStar T100
The on-board HAR station comes equipped with an AM transmitter, digital message player and quick-erect antenna system. Specific frequencies within the FCC-licensed 530 kHz to 1700 kHz AM band may be ordered to spec or determined by analysis. Standard vehicle radios typically receive the signals within 3-5 mile radius range (25-75 square miles). The HAR’s digital message player stores 1,000 high quality messages for re-broadcast without degradation. Messages may be quickly changed as conditions change, and there is live broadcast ability as well as optional automatic NOAA all hazard alerts.
VoiceStar T300
The VoiceStar is a portable Highway Advisory radio, ready to roll. Stations are often integrated into a system of several units to instantly notify the public at highway construction zones, traffic incidents and in health and safety emergencies. Via wireless communication, operators may program broadcast messages and changeable signs remotely. VoiceStar stations are made available through American Signal Company, and partners.
ITS Applications
American Signal Company has been a part of Intelligent Transportation Systems designs since our inception. Amsig can contribute to your solution with turn-key roll-outs for Smart Work Zones, Portable Queue Detection, or Travel/Trip Time projects with our S3C Solution. We can provide components such as portable message signs or portable sensors to plug into your existing ITS programs. If you already have equipment deployed our ITS Cloud Manager software may be the piece that ties it all together.S3C Solution
S Signs – Portable Changeable Message Signs (PCMS) for 3-line/8-character and full matrix displays. Use full size signs for DOT and highway deployments; use smaller signs for municipal and surface street applications. You can use a single sign for a simple project, or 100 signs for large-scale projects. Amsig can incorporate existing dynamic message signs or provide all of your dynamic messaging needs. All of Amsig’s PCMS are NTCIP-compliant, so you can incorporate our signs into an existing project or software.
S Sensors – Amsig works with Doppler radar, microwave radar, and WiFi/Bluetooth sensors to gather data for traffic control or research purposes. Your project sensors will be mounted in conjunction with the PCMS trailers and/or on dedicated Amsig T25 Accessory Trailers. Amsig can incorporate existing sensors into your project or provide all of your portable sensing equipment. Do you use third-party data? No problem, as networked data integrates seamlessly with Amsig’s S3C Solution.
S Software – The ITS Cloud Manager (ICM) software will control your automated dynamic messaging, provide override access to all of your signs, and collect and distribute your traffic data. Algorithms and travel time estimation models are built-in to ICM. This browser-based application means you will never have to install or maintain software on your own equipment. ICM allows for as open or restricted access as your job requires, or can be configured by Amsig so you do not have to interface with it at all. ICM is a subscription service for your devices; you can have an unlimited number of users within the program. ICM is your sign fleet manager, data server, and work zone controller all in one. ICM will work with all NTCIP-compliant signs and sensors, and we can configure your Legacy sensors to work with us, as well.
C Communications – Amsig’s S3C Solution will connect all of your equipment via cellular or radio connectivity. Amsig’s secure IP VPN powered by Verizon will provide you peace-of-mind and maintenance-free communications with no recurring costs. If you prefer to manage your own communications then we work with all of the major cellular carriers. We work with hardware that functions across all bands and distances, whether it is point-to-point, point-to-multipoint, or multipoint-to-multipoint.
Other components of your Amsig S3C Solution could include:
- Website for providing real-time traffic information to constituents and motorists
- Portable video cameras for work zone or situational surveillance
- Portable variable speed limit signs
- Portable speed feedback displays
- Portable Highway Advisory Radio (HAR) for AM broadcasts
Queue Detection Systems
- Typically 1-2 PCMS, 1-2 portable sensors, ICM Software, Communications
- When motorists are alerted to expected delays they will make better decisions
Complete PCMS Integrations
Upstream deployment of your Amsig PCMS will alert motorists of upcoming traffic conditions. Suggest alternate routes, display trip times, or set the proper expectations for passage using your Amsig message signs, or existing signage, with ITS Cloud Manager Software.
Travel/Trip Time
- Robust PCMS and sensor arrangement, ICM software, communications
- Increased motorist awareness will reduce delays and frustration
Smart/Intelligent Work Zones
- PCMS and portable sensors arrayed throughout the workzone, ICM Software, communications
- Increased motorist awareness will reduce delays and frustration, and save the lives of people in the work zone

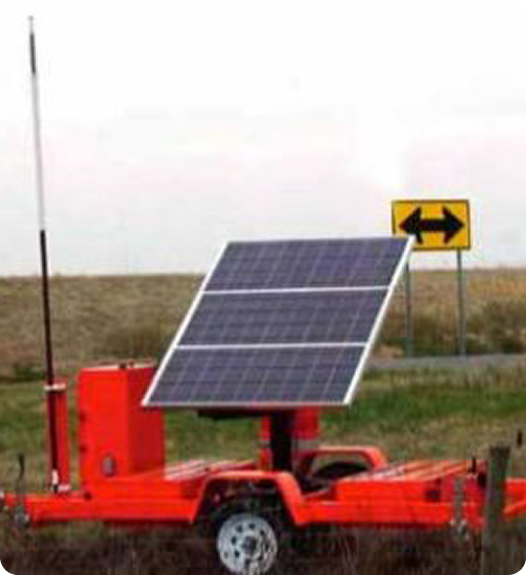

T25 Accessory Trailer
The T-25 Accessory Trailer from American Signal Company is capable of housing all manner of equipment that completes and enhances your work zone. The most common applications are mobile traffic sensors and surveillance.
When equipped with an appropriate traffic sensor you will monitor traffic and relay its data to a central software or work zone system. The T25 with sensor can be utilized to monitor multiple lanes of traffic for volume, occupancy and speed. When part of your Smart Work Zone or Queue Detection System you will be alerted to altering traffic patterns and transmit the data for autonomous or user-defined adjustments for all your integrated equipment. In addition, this unit may be used as an individual traffic monitor to record data for analytical use. American Signal Company’s efficient design allows for traffic statistics to be collected in rural and urban environments in a highly portable fashion.
Installing a camera on your T25 trailer will provide you real-time or archived video/images. Our remote communications package allow for instantaneous streaming and camera control, while on-board and removable storage packages will let you review the imaging on an as-needed basis. The T25 with camera will you give you surveillance over road conditions, work zone deployment, and security for your facility and equipment.
The T25 boasts a robust battery bank, adjustable solar panels, a storage/control cabinet, and an extendable mast to achieve heights suitable for a roadside solution.

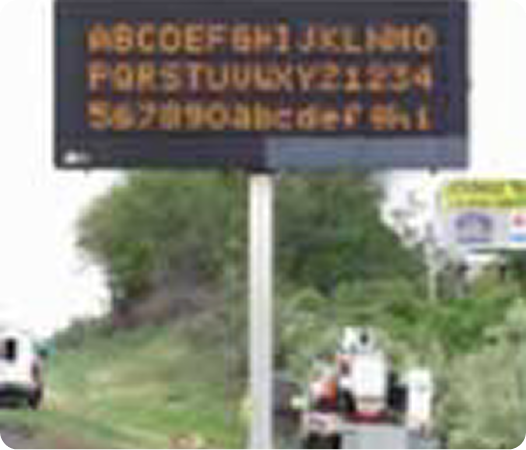

DMS Retrofit Upgrade
Our world class LED technology bring exceptional visual performance and reliability to existing signs that have been in operation for many years. AMSIG Made in America DRUP systems benefit greatly from decades of experience, as a leader in mobile LED DMS. Thousands of AMSIG mobile DMS are operational with DOT’s in North America and Europe. These signs endure considerably more physical punishment than stationary DMS. In addition, AMSIG has a considerable number of overhead changeable signs in operation.DMS Retrofit Upgrade Program
Our world class LED technology brings exceptional visual performance and reliability to existing signs that have been in operation for many years. AMSIG Made in America DRUP systems benefit greatly from decades of experience, as a leader in mobile LED DMS. Thousands of AMSIG mobile DMS are operational with DOT’s in North America and Europe. These signs endure considerably more physical punishment than stationary DMS. In addition, AMSIG has a considerable number of overhead changeable signs in operation.
COST EFFECTIVE
- No charge, on-site, pre-quotation DMS evaluation report
- One Sign, One Price – including new NTCIP compliant
controller - Energy Efficient
- Low maintenance, long life LEDs
MULTI-PLATFORM
- All non LED legacy display technologies can be upgraded
- Freeway or Arterial DMS upgrades for existing walk-in, front access, rear access
EASY TO USE
- User-friendly
- Local and / or remote sign control
- AMSIG sign products
HIGH QUALITY ASSURED
- Rigorous Site acceptance testing
- Two year parts and labor warranty
- Utilizing only the latest LED technology field proven in other
